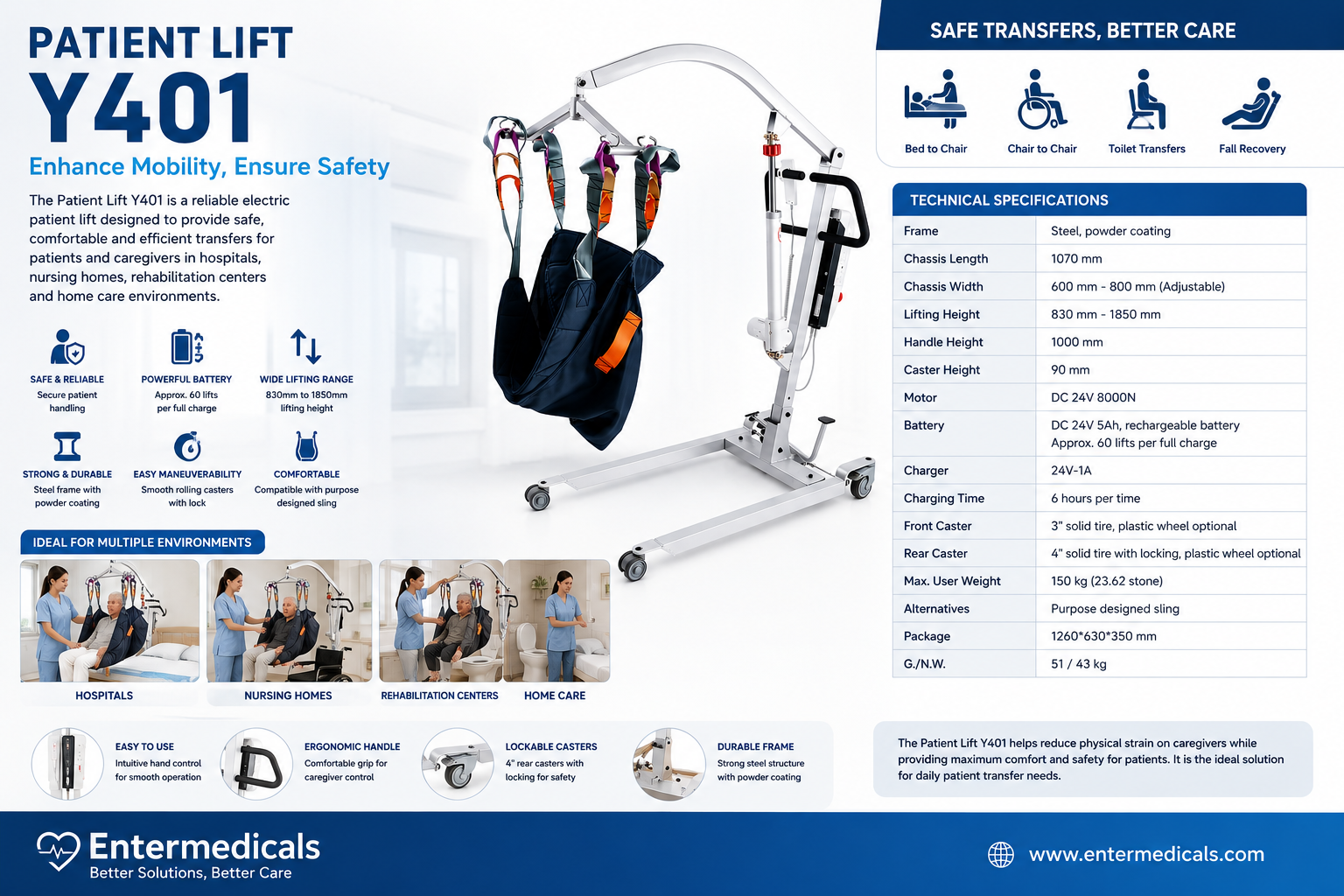

Patient Lift Y401 – Professional Electric Patient Transfer Lift

The Patient Lift Y401 is a reliable and durable electric patient lifting system designed to provide safe, comfortable, and efficient patient transfers in hospitals, nursing homes, rehabilitation centers, and home care environments. Constructed with a high-strength powder-coated steel frame, it offers exceptional stability, smooth operation, and long-lasting performance for caregivers and patients alike.

Powered by a 24V DC motor with an 8000N lifting capacity, the Y401 delivers smooth, quiet, and effortless lifting while minimizing physical strain on caregivers. Its rechargeable 24V 5Ah battery provides approximately 60 lifting cycles per full charge, ensuring dependable operation throughout the day.

Features

• Heavy-duty powder-coated steel frame
• Smooth and quiet 24V DC electric lifting system
• Powerful 8000N actuator motor
• Rechargeable 24V 5Ah battery
• Approximately 60 lifts per full battery charge
• Charging time: 6 hours
• Adjustable chassis width for improved accessibility
• Wide lifting height range for versatile patient transfers
• Lockable rear casters for enhanced safety
• Compatible with purpose-designed patient slings
• Easy-to-operate caregiver controls
• Stable, durable, and low-maintenance design
• Suitable for hospitals, nursing homes, rehabilitation centers, and home care

---

Applications

• Hospitals
• Clinics
• Nursing Homes
• Rehabilitation Centers
• Elderly Care Facilities
• Home Healthcare
• Long-Term Care Centers
• Patient Transfer & Mobility Assistance

Technical Specifications

Specification	Details
Model	Patient Lift Y401
Frame Material	Powder-Coated Steel
Chassis Length	1070 mm
Chassis Width	600–800 mm (Adjustable)
Lifting Height	830–1850 mm
Handle Height	1000 mm
Caster Height	90 mm
Motor	DC 24V, 8000N
Battery	DC 24V 5Ah Rechargeable
Battery Capacity	Approx. 60 lifts per full charge
Charger	24V / 1A
Charging Time	Approx. 6 Hours
Front Casters	3″ Solid Wheels (Plastic Optional)
Rear Casters	4″ Locking Solid Wheels (Plastic Optional)
Maximum User Weight	150 kg
Sling	Purpose-Designed Patient Sling
Package Size	1260 × 630 × 350 mm
Gross Weight	51 kg
Net Weight	43 kg

The lift features an adjustable chassis width from 600 mm to 800 mm, allowing easy access around wheelchairs, beds, and furniture while enhancing stability during patient transfers. With a lifting range of 830 mm to 1850 mm, the Y401 accommodates a wide variety of transfer applications, including bed-to-wheelchair, wheelchair-to-toilet, and floor recovery.

Equipped with durable 3-inch front casters and 4-inch rear locking casters, the lift offers excellent maneuverability and secure positioning during use. It is compatible with purpose-designed patient slings to ensure maximum comfort and safety for different patient needs.

---

Supporting users up to 150 kg, the Patient Lift Y401 is an ideal mobility solution for healthcare professionals seeking reliable patient handling equipment with superior safety, ergonomic design, and ease of operation.
