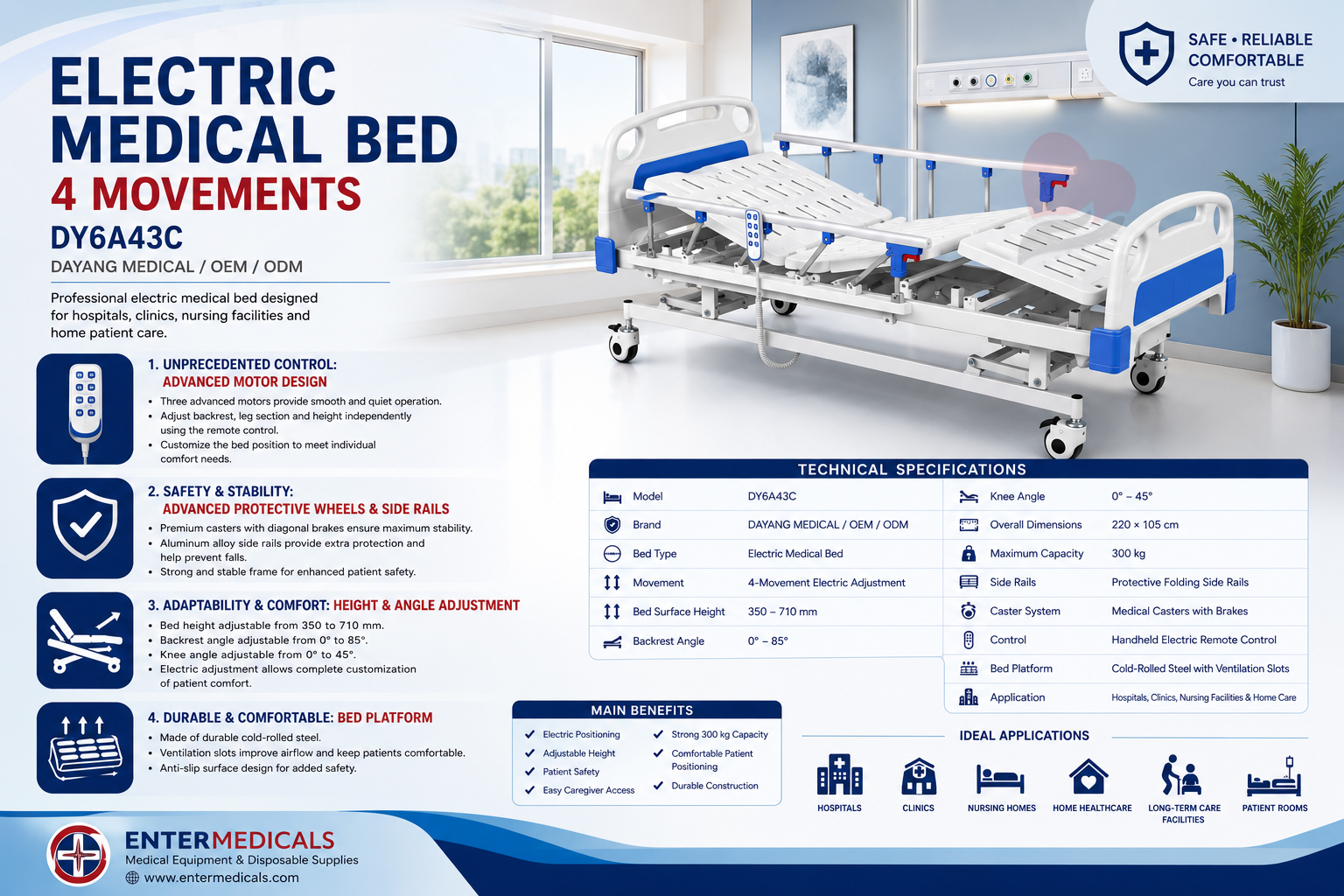

DY6A43C ELECTRIC MEDICAL BED – 4 MOVEMENTS

DY6A43C | DAYANG MEDICAL / OEM / ODM

Professional electric medical bed designed for hospitals, clinics, nursing facilities, and home patient care. The bed combines powered positioning, adjustable height, protective side rails, safety casters, and a durable ventilated bed platform for enhanced patient comfort and caregiver convenience.

Features

1. Advanced Electric Control

• Equipped with three electric motors for smooth and reliable positioning.
• Handheld remote control with dedicated buttons for individual adjustments.
• Allows independent adjustment of the backrest, knee section, and bed height.
• Multiple positions can be selected according to the patient’s comfort and care requirements.

2. Safety & Stability

• Premium medical casters with diagonal locking brakes provide excellent stability.
• Protective side rails help reduce the risk of accidental falls.
• Strong metal frame provides reliable support for everyday hospital and home use.
• Rounded head and foot boards provide additional protection.

3. Adjustable Height & Angles

• Bed surface height: 350–710 mm
• Backrest adjustment: 0°–85°
• Knee adjustment: 0°–45°
• Electric positioning allows caregivers to select a suitable working height while helping patients find a comfortable position.

4. Durable & Comfortable Bed Platform

• Constructed with a durable cold-rolled steel bed platform.
• Ventilation slots help improve airflow around the patient.
• Designed for long-term, heavy-duty daily use.
• The structured surface provides improved support and stability during patient positioning.

Technical Specifications

Specification	Details
Model	DY6A43C
Brand	DAYANG MEDICAL / OEM / ODM
Bed Type	Electric Medical Bed
Movement	4-Movement Electric Adjustment
Bed Surface Height	350–710 mm
Backrest Angle	0°–85°
Knee Angle	0°–45°
Overall Dimensions	220 × 105 cm
Maximum Capacity	300 kg
Side Rails	Protective Folding Side Rails
Caster System	Medical Casters with Brakes
Control	Handheld Electric Remote Control
Bed Platform	Cold-Rolled Steel with Ventilation Slots
Application	Hospitals, Clinics, Nursing Facilities & Home Care

Ideal Applications

Hospitals • Clinics • Nursing Homes • Patient Rooms • Home Healthcare • Long-Term Care Facilities

Main Benefits

Electric Positioning | Adjustable Height | Patient Safety | Easy Caregiver Access | Strong 300 kg Capacity | Comfortable Patient Positioning | Durable Construction
